The advanced options for the roof drawing is as below:

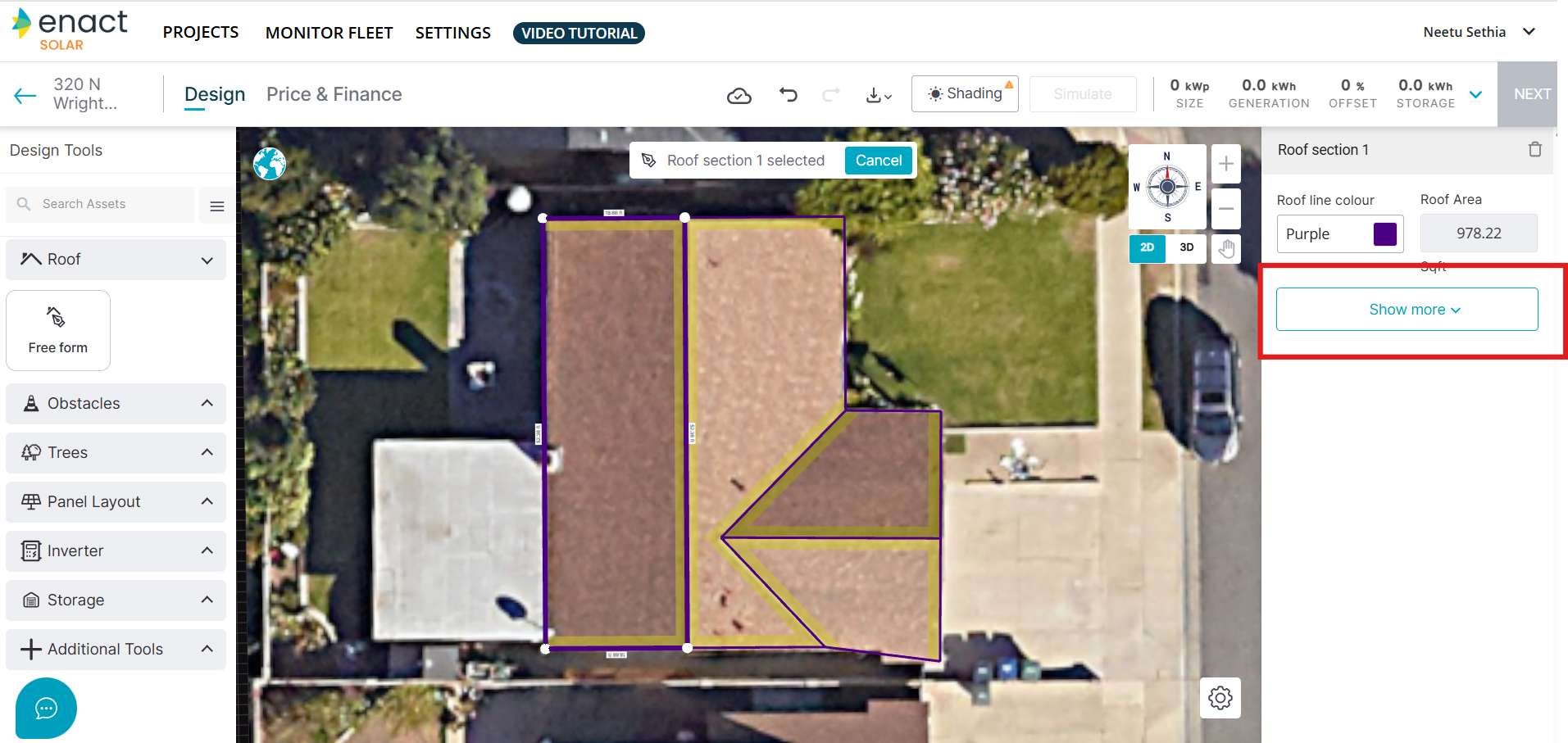

Click on Show more to expand the list.



  • Height of the structure is automatically populated if using Google Solar, however it can be manually adjusted as well. When the height is manually adjusted, you have an option to Reset to default anytime.


  • Pitch is autodetected if using Google Solar in the design however the side of the roof can be flattened. For a tilted roof, the azimuth can be changed when the roof is flattened.

  • Azimuth is the direction of the roof which is also autodetected in the design.

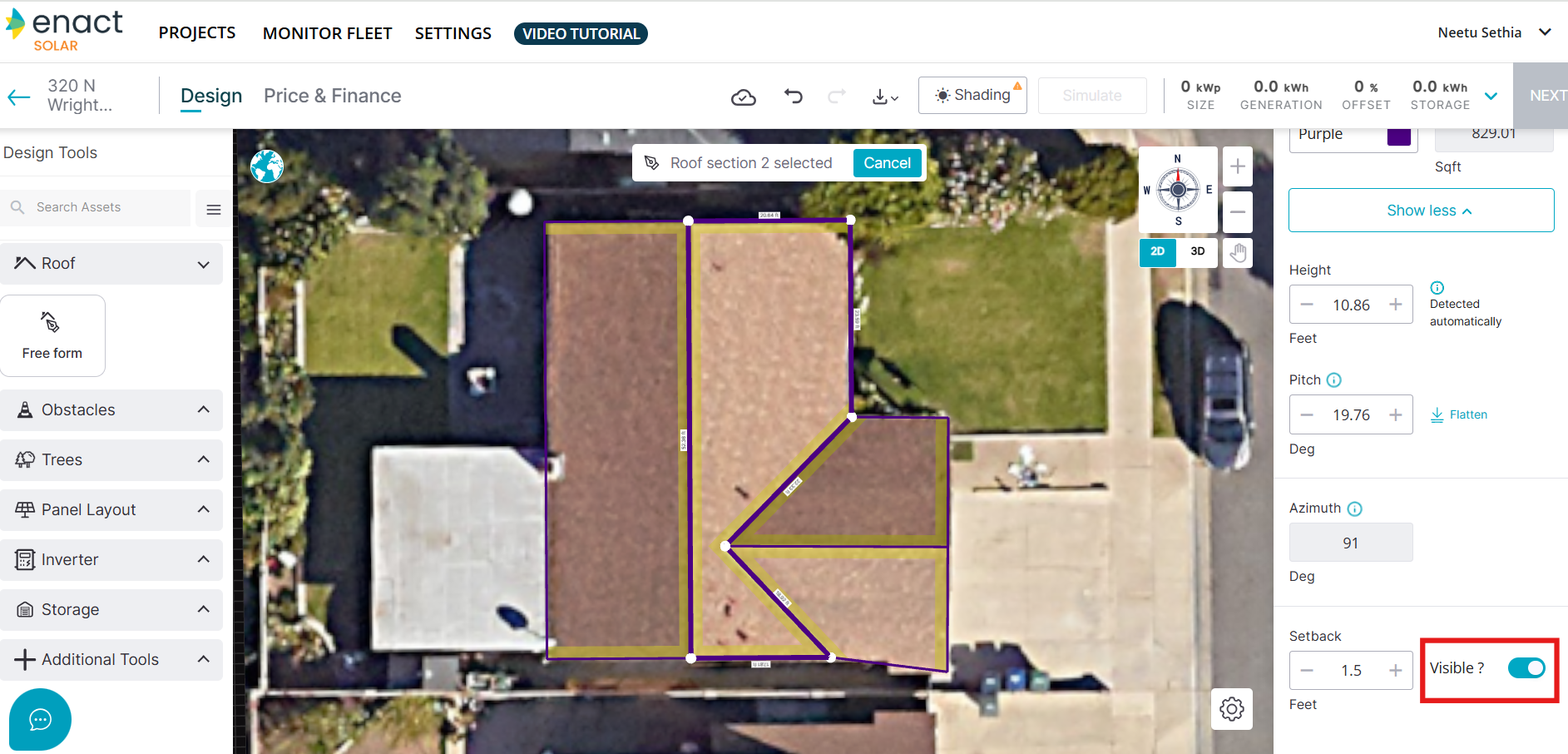

  • Setback can be adjusted and viewed by toggle on Visible?.
